We have the capability to design, plan and install all types of pipeline project.

Our Pipeline Resilience division was created to enhance the group’s existing offer to the water industry. Knowing that having the right techniques, experienced workforce and the specialist equipment is essential for pipeline projects, especially where customer interruption can be avoided.

Our skilled technicians have the experience and capability to design, plan and install all aspects of this specialist division. The ability to perform various pipeline solutions in-house, can often simplify the biggest challenge saving vast time and money for our clients. Continued investment enables procurement of the latest specialist tools, equipment and bespoke fittings to deliver the best possible outcome. Backed up by our other group divisions this enables an unrivalled turn-key package including traffic management, excavation, installation and reinstatement.

A Team You Can Trust

We are a single point provider of all aspects of Pipeline Resilience

Line Stopping

Under Pressure Drilling / Hot Tapping

Under Pressure WATH Uni-Valve

Pipe Cutting / Cold Cutting

Bespoke Pipework & Fittings

with, valve, cost, saving, innovation, pipeline, resilience, doocey, group

Call Doocey Pipeline Resilience to discuss
your project on 0121 520 9874

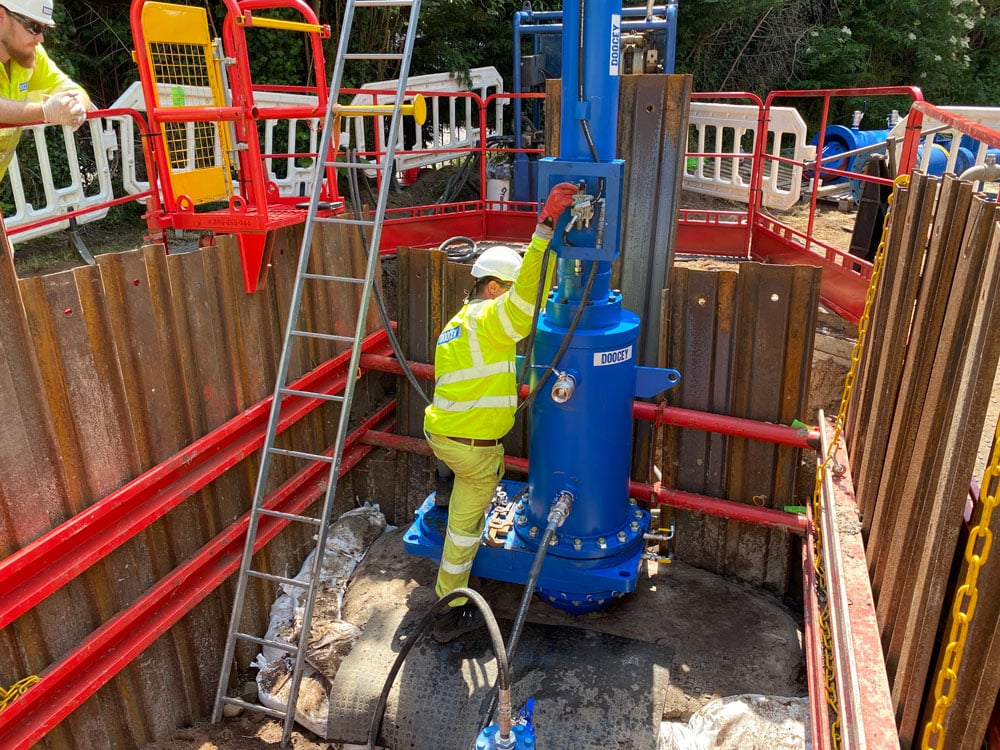

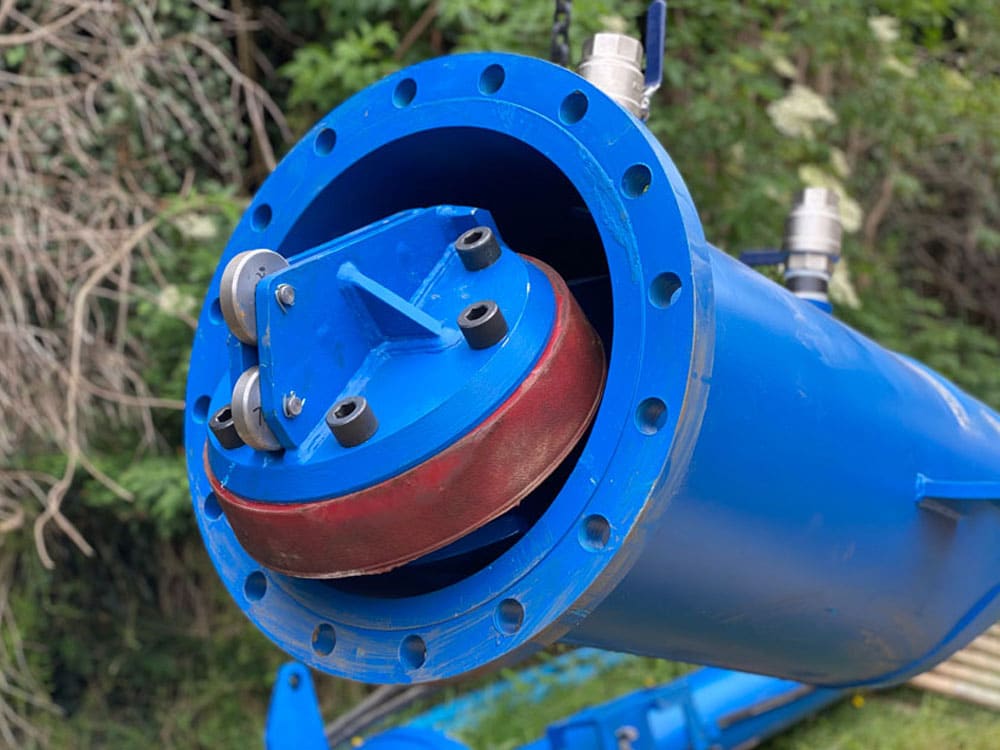

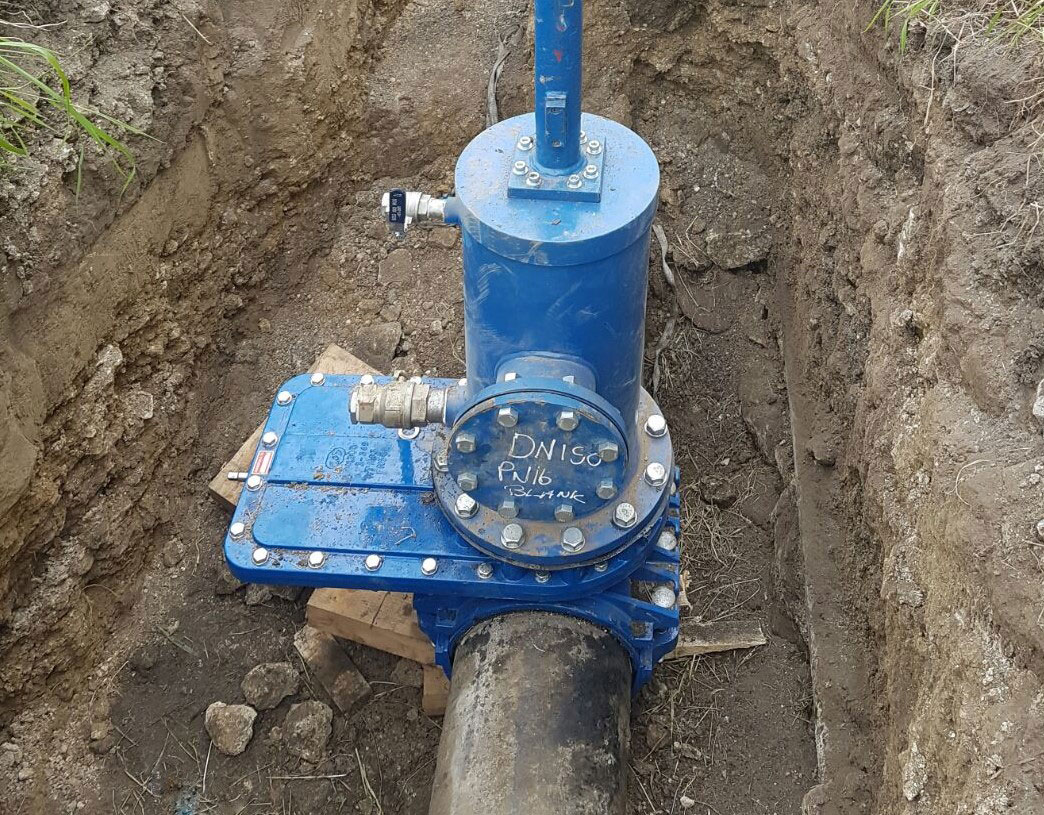

Line Stopping

Our technical engineers are specialists in this process. It is used to isolate a section of pressurised pipeline without causing any interruption to the supply. The pipeline can be operated under normal conditions when used in combination with a bypass.

This method allows for any maintenance, repairs, or modifications to be carried out to the pipeline without service disruption and in a cost-effective way. We have the capabilities to carry out line stop and bypass operations on pipelines from 3“ to 48” diameter with working pressures up to 20 bar.

Advantages associated with line stopping and bypassing:

No need for complete shut-down of the system

No drain down of the system

Suitable for almost all types of pipe

Services maintained with little or no disruption

No leakage or loss of flow

Ideal for isolating sections of ring mains.

Advantages associated with under pressure drilling:

An ideal option when shut-down is not practical

No major disruptions to pressurised systems

No leakage or loss of flow

Risk of contamination in the pipes or tanks being reduced

Reduced risk of discolouration / contamination incidents

Can be done on almost all pipe types

Eliminates down time when the process is complete.

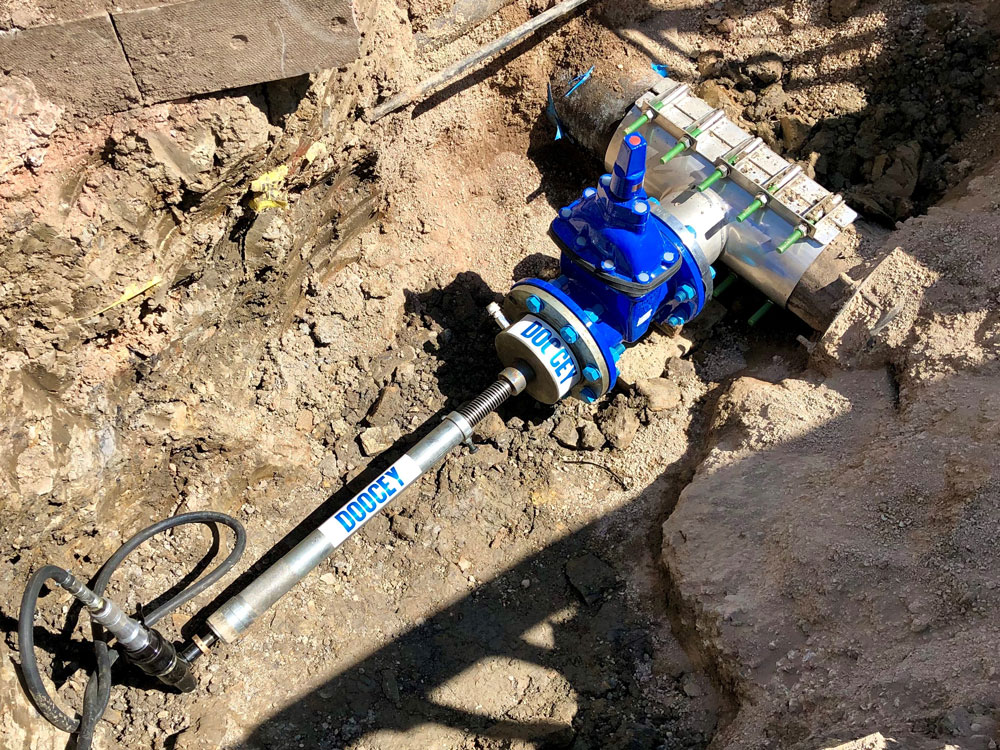

Under Pressure Drilling / Hot Tapping

This method provides a connection onto a pressurised main without any interruption to supply. It avoids any requirement to shut down the system. Our technical engineers use the latest coupon retention technology available. When a hot tap is performed, the wired pilot drill retains the coupon for recovery when the process is complete. We have the capabilities to execute drillings up to 48” diameter core size on any host size and material pipeline.

The installation is completed without leakage or loss of supply. This procedure can be carried out on most pipelines including steel, cast iron, ductile iron, asbestos cement, PVC or MDPE/HDPE.

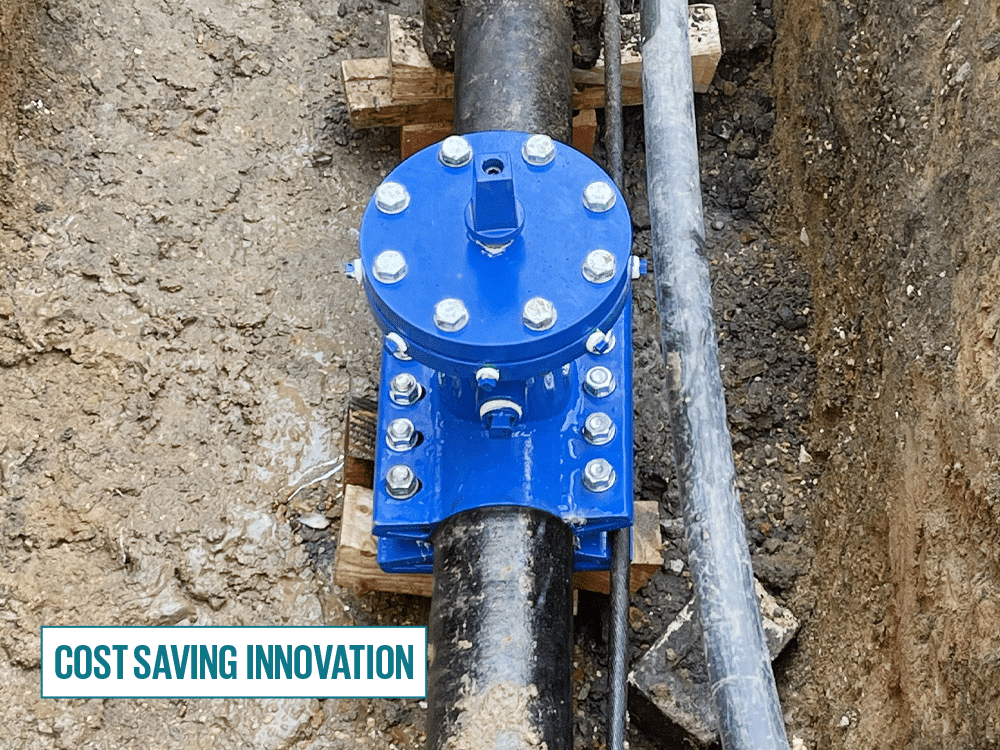

Under Pressure WATH Uni-Valve

Our technical engineers have the knowledge, experience and machinery to carry out this specialist installation, using the best quality fittings in the industry.

The innovative, permanent under pressure gate valve offers an alternative option to line stopping. Typically, they are installed much quicker and only requires a single excavation. Mains sizes available from 3” to 12” including non-standard 5”, 7” and 9”.  The seal has been engineered to withstand up to 24 bar of pressure whilst in operation.

The WATH Uni-Valve is compatible for use with the following pipe types: steel, cast iron, ductile iron, asbestos cement, PVC or MDPE/HDPE.

with, valve, line, stopping, pipeline, doocey, group

Advantages associated with the WATH Uni-Valve:

Faster and more convenient installation than line stop method

Like-for-like replacement of current gate valves, clockwise/anti-clockwise and with the same number of turns as standard valves

One excavation eliminating expensive multiple excavations

No need for complete shut-down of system

Can be installed in restricted spaces in close proximity to existing services

No drain down of the system required

Suitable for almost all types of pipe

A permanent gate valve leaving a fixed capital asset on the network

Services maintained with little or no disruption

A higher successful percentage of installations in comparison to other products on the market.

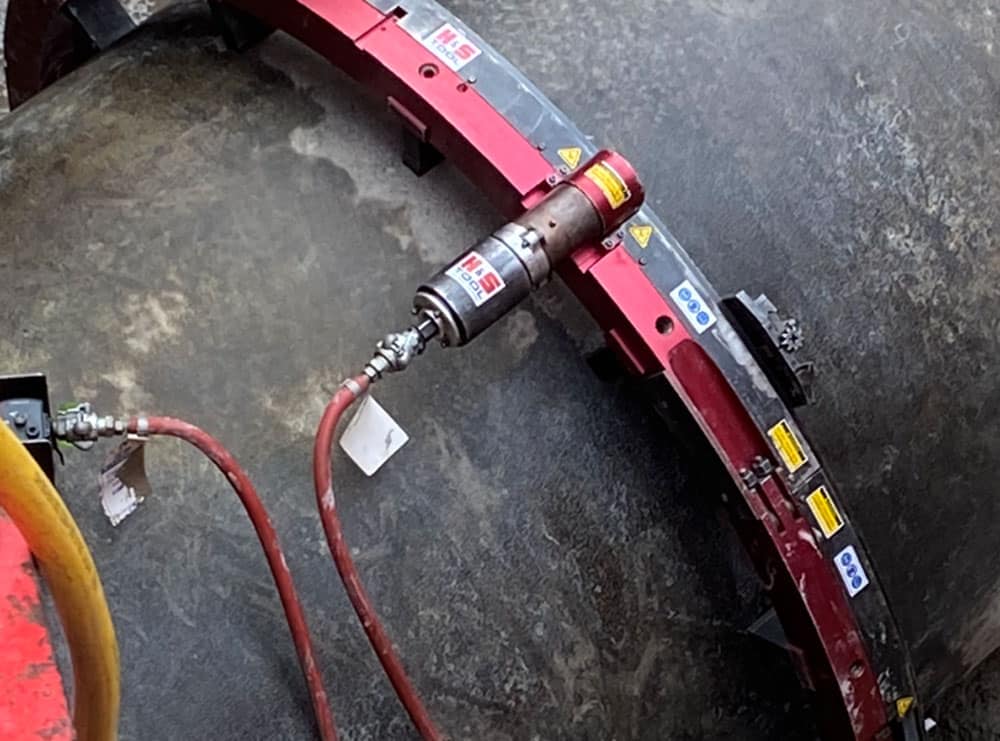

Pipe Cutting / Cold Cutting

Our technical engineers also have the capabilities to carry out controlled cold cutting of pipelines from 4” through to 60” on cast iron, ductile iron and asbestos concrete pipelines using hydraulic grit saw / keel cutting up to 12” and split frame/clamshell technology for cuts from 14” to 60”.

Core advantages:

Extremely safe without generating spark, flame, or excessive heat

No airborne contamination

No chance of explosion

Efficient method for most pipe material types

Eliminates the need for grinding

Minimal clearance required around pipework.

Bespoke Pipework & Fittings

We provide the knowledge, care and equipment to fabricate and install an array of pipework & fittings, catered to your needs.

Split tees – Carbon & stainless steel, welded / screwed

Combined valve tee

Dismantling joints

Repair clamps and fittings

Couplings and flange adaptors

Steel fabrication

MDPE fusion welded

Encapsulation collars

Butt fusion and socket fusion.
